Pumpless Smoke System

For Smaller 4-stroke Radio Control Airplane Engines

by Michael Myers

~~~~~~~

Photos to accompany the explanation of my pumpless smoke system on a .91 4-stroke.

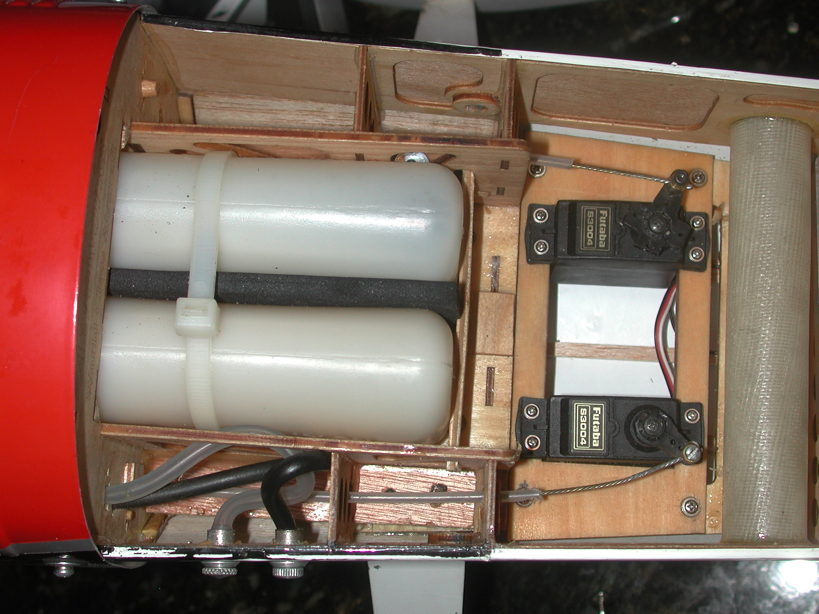

smoke tanks
The throttle servo (top), the smoke valve servo, the two tanks and the two fill tubes.

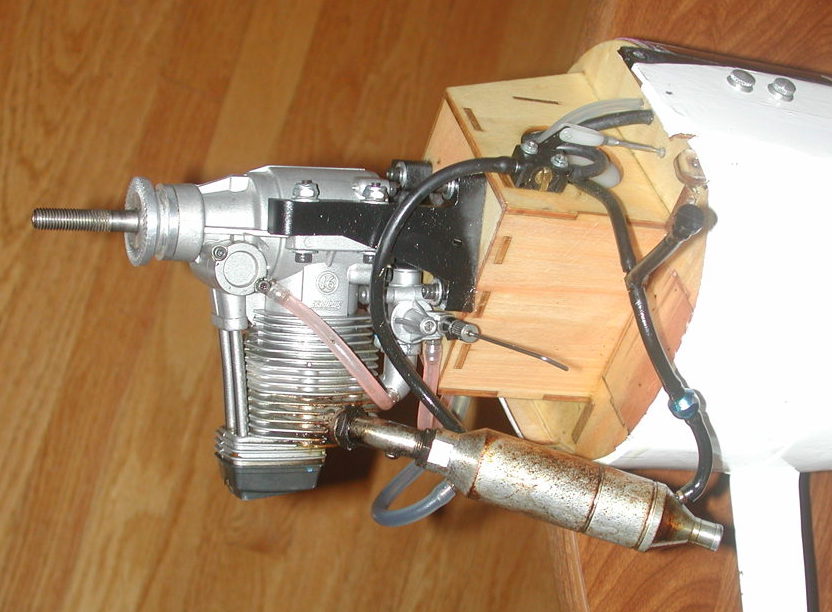

smoke tubing
This shows the one-way check valve, the three tubes coming off the muffler and the plugged smoke oil overflow tube.

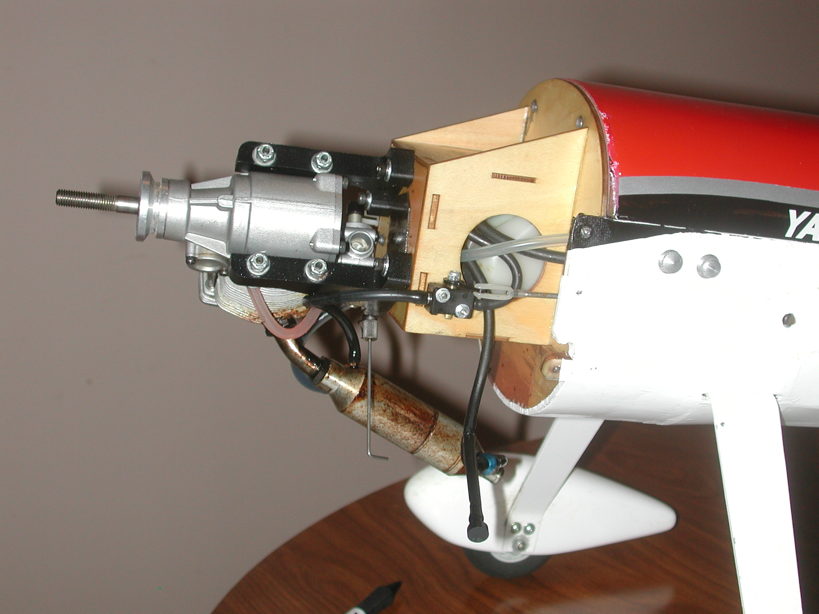

smoke valve
A good view of the on-off valve and the smoke tube going into the muffler
